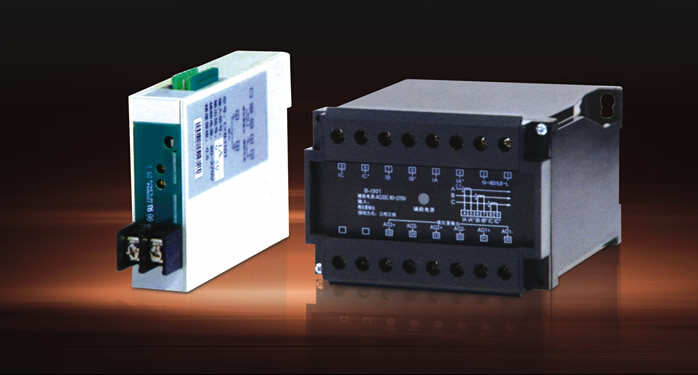

Electric Transducers:
Transduce current, voltage, power, power factor into linear analog signal or digital signal.
| Technical Symbol |
Parameters |
| Accuracy Class |
0.5,0.2 |
| |
Standard Value |
Current: AC/DC 1A/5A; Voltage: AC/DC100V,300V,500V, etc. |
Input |
Overload |
Continous: 1.2 times, Instant: 10 times/5s, Instant Voltage: 2 times/30s |
| Absorb Power |
Currnet Input: ≤0.3VA;
Voltage Input: ≤0.3VA(100V), ≤0.6VA(300V),≤1VA(500V)
|
| Frequency |
50±Hz, 60±5Hz |
Output |
Standard Value |
4-20mA,0-20mA,4-12-20mA,0-5V,0-10V, etc |
| Load Resistance |
Current output: ≤600Ω, Voltage output: ≥1000Ω |
| Ripple Capacity |
<0.5% peak time |
| Reaction Time |
|
≤400ms |
| Power Supply |
Voltage |
AC110V/220V±15%,AC/DC85-270V |
| Power Consumption |
AC current/voltage: ≤3VA; Power: ≤4VA |
| Insulation Resistance |
|
≥100MΩ |
| Pressure Resistance |
|
Input/output/power: 2.0kV/1Min,50Hz |
| Temperature Ratio |
|
≤100ppm/℃ |
Environment |
Temperature |
Working: -25℃-55℃; Storage: -25℃-70℃ |
| Humidity |
≤90%, without moisture, no corresive |
| Sea Level |
≤2000m |
| Mounting |
|
TS35 rail, or fixed by screw |
|
